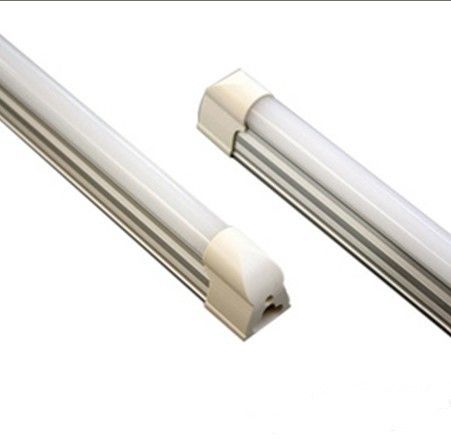

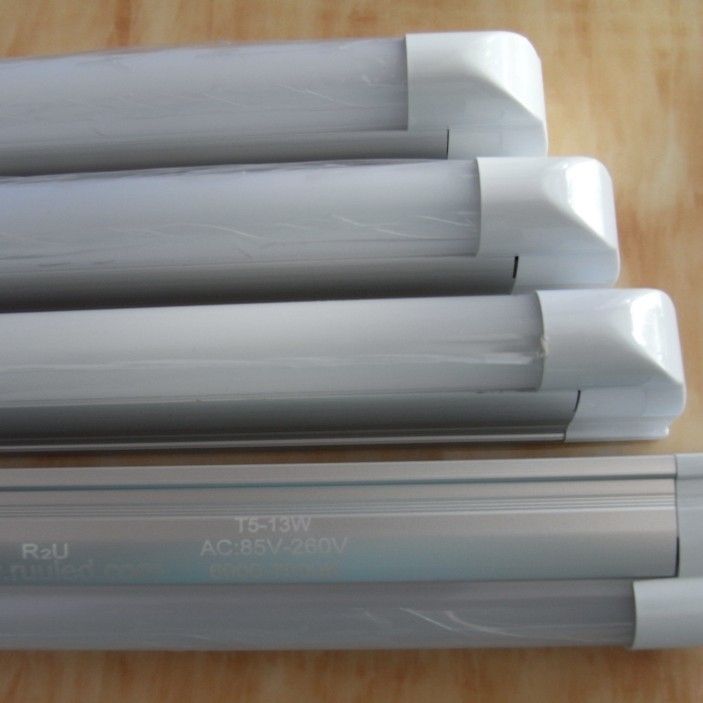

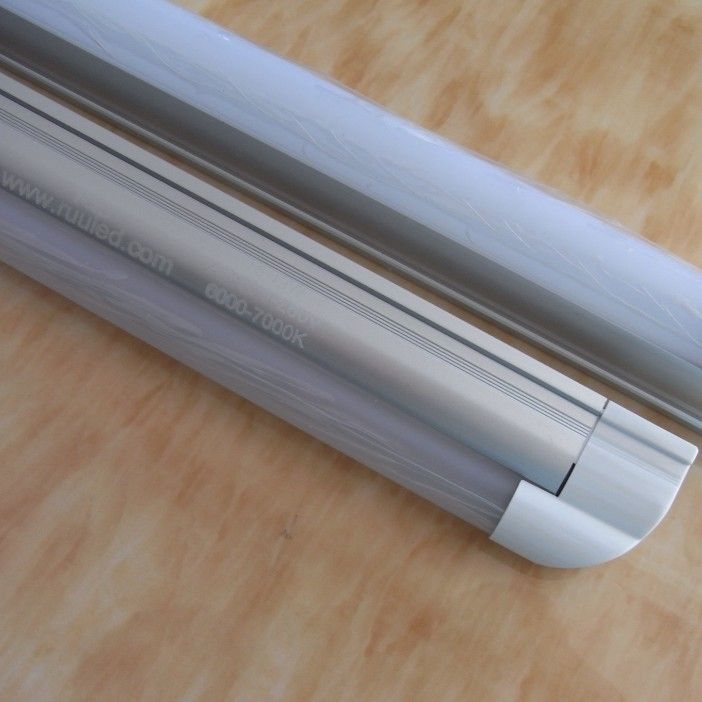

目新しさ2フィート5 wをintergratedチューブ照明器具smd2835、中国照明を導きましt

製品詳細:
起源の場所:深セン、中国(本土)
ブランド名:China-lightingled
認証:CE & ROHS
モデル番号:R2U-T5U-600-9W
お支払配送条件:
最小注文数量:1 pc、卸売り:6.55/pc
パッケージの詳細:パックするホワイトボックスで
配信時間:30〜10日間(注文の量に依存している)
支払条件:tt、paypal
供給の能力:月に1万個
お問い合わせ
t5 of China lighting led t5 of China lighting led t5 of China lighting led t5 of China lighting led
詳細な製品説明

目新しさ2フィート5 wをintergratedチューブ照明器具smd2835、中国照明を導きましたt 5、オフィス照明・商業照明の25 wの蛍光管の交換2835 smd 600 mm 2 tチューブライト9ワットce rohs、110 lm/w


製品名

intergratedチューブ9 w 5

モデル番号

r2u-t5u-600-9w

応用

オフィス照明のために、住宅用照明器具、照明、学校、病院、工場、店舗は広く使用され、展示ホールと若干の他の内部の照明エリア。

利点:

非常に低いエネルギー利用のled照明を劇的に運営経費を減らすことができ、電気経費を削減する。広い入力電圧、世界中のユーザーに適した

長寿命

ledライトの寿命は、通常10~12年、現在の技術の採用は、生命を数回。非常に少ない頻繁に必要にサービスまたはledに代わる低メンテナンスコストを意味します。

より少しの電気的損失

蛍光灯の安定器を必要とする伝統的な種類は、追加の電子と電磁部品は、いくつかの電力を消費する


速い詳細


1つのスーパー明るいledの高輝度と効率。
2ランプ光束(lm): 100 lm/w
シェルの制服を配布する3光送信超高速光。
4熱管理を導いて、低温度の増加、寿命を大きく確保するため
5超長寿命設計ドライバ、5万時間間隔で推定された。
販売の後の3つの6年間保証。我々は、無料で交換のための保証期間中です。


の一般的な情報intergratedチューブ9 w 5

intergratedチューブ9 w 5省エネルギー照明の新しい種類は、従来の蛍光照明器具の交換。それはあなたの電力費を毎月を保つのを助けます。従来の電球を所有する高エネルギー消費、のようないくつかの区別の特徴は、短い寿命が期限切れのです。電球の面発光原理に新しい緑と完璧な照明の選択肢となっている。
ランプボディアルミニウム合金材料の高品質の、空気の対流のユニークなデザインで、ランプの放熱性能が大幅に向上する。光源としてledを採用した低光の減衰と高ルーメン、省エネと長寿命の。ドライバ部の高精度、高効率で定電流駆動電源を採用し、安定した性能とストローブ


製品仕様

入力電圧(ドライバ):

Description

9W Intergrated T5 LED Tube

Product size

L600 mm

Light Source

LED 2835 chip

Power Consumption

9 Watt

LED Driver Efficiency

≥85%

PF

≥0.95

Operating temperature

-40~ 60℃

CCT

2800k-6500K

Luminous Efficiency

100 - 110 Lm/W

Luminous Flux

850-950lm

CRI

Ra ≥ 80

Beam angle

160°

Pin Type

Intergrated / Plug

Certification

CE , RoHS

IP grade

IP44



Features of Intergrated:

1.  Energy Saving . Saving 60% - 65% power than traditional  lamp .
2.  Advanced super longlife and stable driver .
3.  Professional thermal management .
4.  Instant working after turn on , no warm up time required .
5.  No noise , no flickering .
6.  No UV or IR radiation in the beam, mercury free .
7.  Anti-shock , anti-moisture .
8.  Aluminum alloy body .
9. Eco-friendly . No mercury and other harmful materials

10 Years Cost ComparisonofUnify LED T5 Tube Light 18W

Fluorescent light

Halogen bulb

LED tube t8

Purchase price

$9.00

$3.00

$20.00

Power used (watts)

40        ( 36w light 4w Ballast)

80

18

lumens

1800

1700

1800

lumens/watt

50

14

80

CRI

85

100

82

Lifespan (hours)

3,5 – 5 K.hrs

2 K.hrs

35 – 50 K.hrs

Bulb lifetime in years @ 8 hours/day

1.25 – 1.5

0.7

>10

Energy cost over 10 years @ 20 cents/kWh

$235

$470

$105

light cost

8 * 9 = $72

15 * 3 = $45

1 * 20 = $20

Total cost per 1800 lumens

$307

$515

$125



Successful Energy Saving Case of9W Intergrated T5 LED Tube:


600mm 2 ft 9 Watt T5 Led Tube Light Fixtures 60 Hz / Fluorescent Light Replacement
600mm 2 ft 9 Watt T5 Led Tube Light Fixtures 60 Hz / Fluorescent Light Replacement
