9ワット集積600 mm 2 tチューブライトce rohs、110 lm/w
Please supply FOC. 1% of the quantity of each item ordered so that it could be used for replacement in case any of the lights have problem during warranty period.
—— Kuldip Shah
Spain
Thanks for visiting our Company. I enjoyed the whole week with you especially the store visits. We will send the order for Sheraton by tomorrow.
—— Rich Weigold
Thanks for your email. The 12X1 watts down spot light looks good and also it is perfect matching with all the ceiling spot lights.
—— Nathan Nath

9ワット集積600 mm 2 tチューブライトce rohs
製品名 | 9 wの集積 ledライト8管 | モデル番号 | r2u-28u-60-9w |
応用 | オフィス照明のために、住宅用照明器具、照明、学校、病院、工場、店舗は広く使用され、展示ホールと若干の他の内部の照明エリア。 | 利点: | 非常に低いエネルギー利用のled照明を劇的に運営経費を減らすことができ、電気経費を削減する。広い入力電圧、世界中のユーザーに適した |
長寿命 | ledライトの寿命は、通常10~12年、現在の技術の採用は、生命を数回。非常に少ない頻繁に必要にサービスまたはledに代わる低メンテナンスコストを意味します。 | より少しの電気的損失 | 蛍光灯の安定器を必要とする伝統的な種類は、追加の電子と電磁部品は、いくつかの電力を消費する |
速い詳細
1 超高輝度ledの高輝度と効率。
2ランプ光束(lm): 900〜1000 lm
シェルの制服を配布する3光送信超高速光。
4熱管理を導いて、低温度の増加、寿命を大きく確保するため
5超長寿命設計ドライバ、5万時間間隔で推定された。
販売の後の3つの6年間保証。我々は、無料で交換のための保証期間中です。
の一般的な情報9 wの集積 ledライト8管
9 wの集積 ledライト8管省エネルギー照明の新しい種類は、従来の蛍光照明器具の交換。それはあなたの電力費を毎月を保つのを助けます。従来の電球を所有する高エネルギー消費、のようないくつかの区別の特徴は、短い寿命が期限切れのです。電球の面発光原理に新しい緑と完璧な照明の選択肢となっている。
ランプボディアルミニウム合金材料の高品質の、空気の対流のユニークなデザインで、ランプの放熱性能が大幅に向上する。光源としてledを採用した低光の減衰と高ルーメン、省エネと長寿命の。ドライバ部の高精度、高効率で定電流駆動電源を採用し、安定した性能とストローブ
製品仕様
85~265V AC | |
Description | 9W Integrated LED T8 Tube Light |
Product size | D26 * L600 mm |

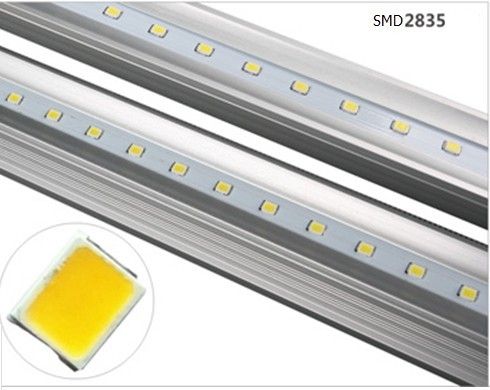

Light Source | LED 2835 chip |
Power Consumption | 9 Watt |
LED Driver Efficiency | ≥85% |
PF | ≥0.95 |
Operating temperature | -40~ 60℃ |
CCT | 2800k-6500K |
Luminous Efficiency | 100 - 110 Lm/W |
Luminous Flux | 2800k-6500lm |
CRI | Ra ≥ 80 |
Beam angle | 160° |
Pin Type | Unify / Plug |
Certification | CE , RoHS |
IP grade | IP44 |
Features of9W Integrated LED T8 Tube Light:
1. Energy Saving . Saving 60% - 65% power than traditional lamp .
2. Advanced super longlife and stable driver .
3. Professional thermal management .
4. Instant working after turn on , no warm up time required .
5. No noise , no flickering .
6. No UV or IR radiation in the beam, mercury free .
7. Anti-shock , anti-moisture .
8. Aluminum alloy body .
9. Eco-friendly . No mercury and other harmful materials
10 Years Cost Comparisonof9W Integrated LED T8 Tube Light
Fluorescent light | Halogen bulb | LED tube t8 | |
Purchase price | $9.00 | $3.00 | $20.00 |
Power used (watts) | 40 ( 36w light 4w Ballast) | 80 | 18 |
lumens | 1800 | 1700 | 1800 |
lumens/watt | 50 | 14 | 80 |
CRI | 85 | 100 | 82 |
Lifespan (hours) | 3,5 – 5 K.hrs | 2 K.hrs | 35 – 50 K.hrs |
Bulb lifetime in years @ 8 hours/day | 1.25 – 1.5 | 0.7 | >10 |
Energy cost over 10 years @ 20 cents/kWh | $235 | $470 | $105 |
light cost | 8 * 9 = $72 | 15 * 3 = $45 | 1 * 20 = $20 |
Total cost per 1800 lumens | $307 | $515 | $125 |
Successful Energy Saving Case of9W Integrated LED T8 Tube Light:
